SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free

    Buy cheap SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free from wholesalers

    Buy cheap SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free from wholesalers
    • Buy cheap SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free from wholesalers

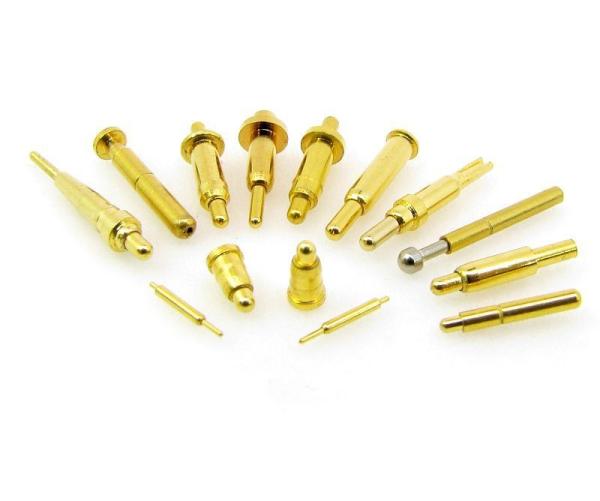

    SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free

    Ask Lasest Price
    Brand Name : Rtench
    Model Number : PGC-RA-2PIN
    Certification : ISO9001 SGS-ROHS2.0
    Payment Terms : T/T
    Supply Ability : 20000000PCS/day
    Delivery Time : 10-15 work days
    Price : Negotiable
    • Product Details
    • Company Profile

    SUS304 Spring Surface Mount Pogo Pins C3604 Plunger Tube Halogen Free

    Application

    1. Smart wear (ssart bracelet, snart vatch, pet tracker, bluetooth headset, snort clothing, etc.)
    2. Connect the Shared charging cabinet, alnl charging cabinet, data line, charging line and line segaent of magnetic suction board.
    3. Medical equipnent, beauty instruaent, wireless equlpaent, telecommunication equipnent, autoaation and industrial equipment, etc.
    4. Aviation, aerospace Billtary coonmication and Bilitary electronics, etc.
    5. Autoaobile, on-board navigation, testing and testing equipement, etc.
    6. Consuer electronics (printers, e-cigarettes, mobile phones* tablet computers, caoeras, audio visual equipment, PDA, children's intelligent building blocks, educational equipaent.


    What is Pogo pin?

    Pogo Pin is spring loaded probe which is made by precision instruments with riveting workmanship. It usually consists of plunger, tube and spring.

    Pogo pin is generally applied in the precision connection inside the electronics products such as mobile phones, communication devices, automotive, medical devices, aerospace devices and so on. Since pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector.


    • Pogo Pin is to realise the connection between Board to Board

    • Pogo pin usually has vertical connection and right angle connection

    • Pogo pin is also to realise the connection between cable and device


    Pogo pin Materials

    PartsMaterialsSurface treatmentHazardous substancesRemarks
    PlungerC3604Ni 1.4u~3.75u

    Au 0.4u

    Lead is less than 4%, RoHS compliantsForming Process C3604 for Lathe Tuming Maching
    TubeC3604Ni 1.4i~3.5u

    Au 0.1u

    Lead is less than 4%, RoHS compliants
    SpringSUS304N/A
    HousingPA46

    LCP

    HPPA

    N/AHalogen free materialfire-protection rating UL94V-0
    CapPA46

    HPPA

    N/AHalogen free materialfire-protection rating UL94V-0
