Structural Features of SMT POGO PIN

With ball structure: The ball inside allows more buffer, so result in a even more reliable connection.

Bias structure: The biased tail of the plunger creates a lateral force, so further improves the contact.

Back drill structure: The back drilled plunger increases the space for the spring, so allows a shorter pogo pin for tight space.

• Pogo Pin is to realise the connection between Board to Board
• Pogo pin usually has vertical connection and right angle connection
• Pogo pin is also to realise the connection between cable and device

Feature

• - Available 0.5A per pin
• - Working Height: 2.05mm ~ 2.55mm
• - Spring Force: 0.5N or 0.6N
• - Tube Bottom Diameter: 2.1mm

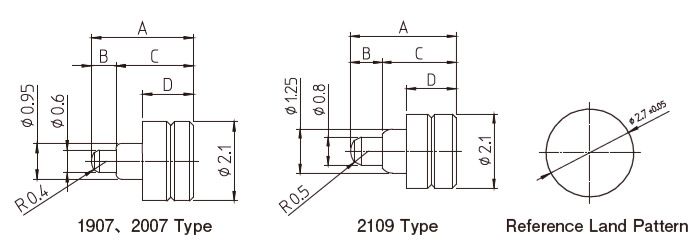

Basic Specifications

Advantage
– Ball strucutre to protect spring from high current.
– Thru-hole tail for secure soldering.
– Solder-cup tail for wire attachment. (Recommended AWG19 or greater)

What is Pogo pin?

Pogo Pin is spring loaded probe which is made by precision instruments with riveting workmanship. It usually consists of plunger, tube and spring.

Pogo pin is generally applied in the precision connection inside the electronics products such as mobile phones, communication devices, automotive, medical devices, aerospace devices and so on. Since pogo pin is very fine probe, it can make the finished connector light in weight, small in size and exquisite in look when it’s applied in a precision connector.
